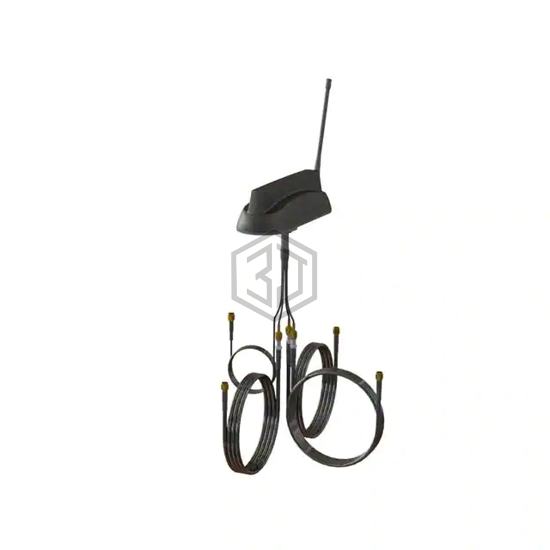

ANT LOW PROFILE 4-PORT SHARKFIN
VFQ69383B2NJU-518S is a RF Antennas manufactured by TE Connectivity Laird. ANT LOW PROFILE 4-PORT SHARKFIN. Key specifications: mounting type Panel Mount, termination SMA Male (3), ingress protection IP67, power - max 60 W.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, General ISM, Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 450MHz, 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz |
| Frequency Range | 380MHz ~ 520MHz, 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz |
| Antenna Type | Dome |
| Number of Bands | 13 |
| VSWR | 1.9, 2, 2.1, 2.2, 2.4, 2.5 |
| Return Loss | - |
| Gain | 0.8dBi, 0.5dBi, -0.6dBi, 0.4dBi, 3.9dBi, 4.9dBi, 2.5dBi, 3.3dBi, 3.3dBi, 2.6dBi, 2.7dBi, 3.9dBi, 5.6dBi |
| Power - Max | 60 W |
| Features | Cable - 4.9m, LNA |
| Termination | SMA Male (3) |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 1.890" (48.00mm) |
| Applications | 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE |
Submit your RFQ for VFQ69383B2NJU-518S and get a quote within 24 hours.
