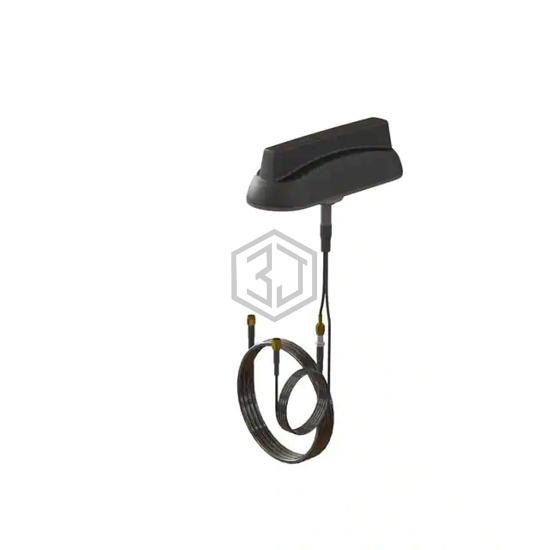

ANT LOW PROFILE 2-PORT SHARKFIN
VFD69383B1NJN-518Q is a RF Antennas manufactured by TE Connectivity Laird. ANT LOW PROFILE 2-PORT SHARKFIN. Key specifications: mounting type Panel Mount, termination SMA Male (2), ingress protection IP67, power - max 10 W.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, General ISM, Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz |
| Frequency Range | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz |
| Antenna Type | Dome |
| Number of Bands | 12 |
| VSWR | 2 |
| Return Loss | - |
| Gain | 0.9dBi, 1.7dBi, 1.9dBi, 3.7dBi, 4.7dBi, 5.6dBi, 4.3dBi, 3.8dBi, 3.8dBi, 5.1dBi, 5.5dBi, 7dBi |
| Power - Max | 10 W |
| Features | Cable - 5.18m, LNA |
| Termination | SMA Male (2) |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 1.890" (48.00mm) |
| Applications | 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE |
