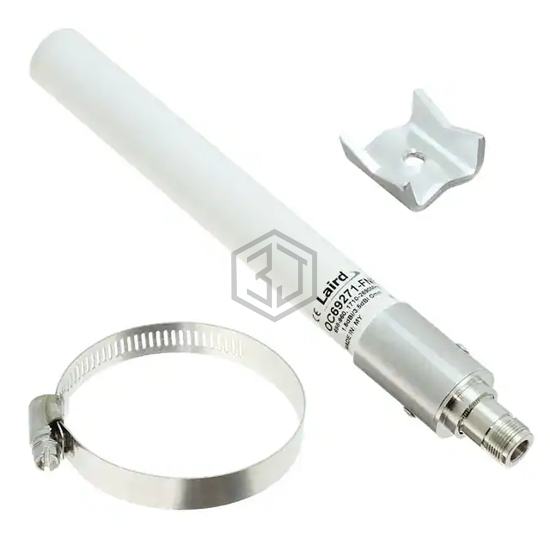

ANT BROADBAND LTE OMNI
OC69271-FNF is a RF Antennas manufactured by TE Connectivity Laird. ANT BROADBAND LTE OMNI. Key specifications: mounting type Bracket Mount, termination N Type Female, power - max 10 W, frequency range 698MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.1GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz.
In Stock: 288
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.85GHz, 2.045GHz, 2.3GHz, 2.595GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.1GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz |
| Antenna Type | Whip, Straight |
| Number of Bands | 5 |
| VSWR | 2, 2.5 |
| Return Loss | - |
| Gain | 1.5dBi, 3.5dBi |
| Power - Max | 10 W |
| Features | - |
| Termination | N Type Female |
| Ingress Protection | - |
| Mounting Type | Bracket Mount |
| Height (Max) | 9.764" (248.00mm) |
| Applications | 3G, 4G, GSM, LTE, WiMax™ |
Submit your RFQ for OC69271-FNF and get a quote within 24 hours.
