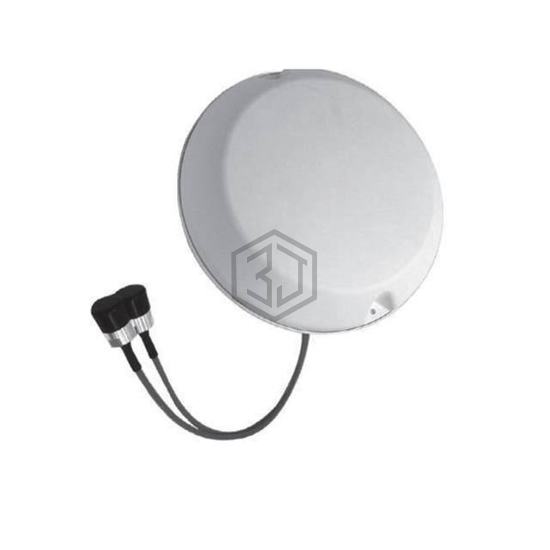

ANT CEILING MIMO DUAL 4.3-10
CMD69423P-B30D43F is a RF Antennas manufactured by TE Connectivity Laird. ANT CEILING MIMO DUAL 4.3-10. Key specifications: mounting type Panel Mount, termination 4.3/10 - Female, power - max 50 W, frequency range 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 2.18GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz.
In Stock: 28
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 752MHz, 892MHz, 1.45GHz, 1.935GHz, 2.5GHz, 3.75GHz |
| Frequency Range | 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 2.18GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz |
| Antenna Type | Flat Panel |
| Number of Bands | 6 |
| VSWR | 2 |
| Return Loss | - |
| Gain | 3.9dBi, 5.3dBi, 6dBi, 6.1dBi, 6.8dBi, 6.7dBi |
| Power - Max | 50 W |
| Features | Cable - 300mm |
| Termination | 4.3/10 - Female |
| Ingress Protection | - |
| Mounting Type | Panel Mount |
| Height (Max) | 1.713" (43.50mm) |
| Applications | 5G, GPRS |
Submit your RFQ for CMD69423P-B30D43F and get a quote within 24 hours.
