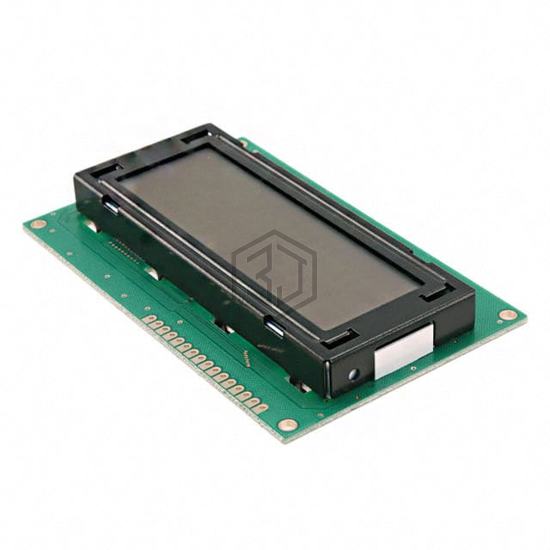

LCD MOD 80DIG 20X4 TRANSFLCT WHT
C-51847NFJ-SLW-AFN is a Display Modules - LCD, OLED Character and Numeric manufactured by Kyocera International, Inc.. LCD MOD 80DIG 20X4 TRANSFLCT WHT. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, interface Parallel, 8-Bit, display type FSTN - Film Super-Twisted Nematic.
In Stock: 3,887
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Characters | 80 |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | - |
| Outline L x W x H | 98.50mm x 61.00mm x 15.60mm |
| Viewing Area | 76.00mm L x 25.20mm W |
| Backlight | LED - White |
| Voltage - Supply | 4.5V ~ 5.5V |
| Dot Size | - |
| Interface | Parallel, 8-Bit |
| Controller Type | - |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Black |
| Background Color | White |
Submit your RFQ for C-51847NFJ-SLW-AFN and get a quote within 24 hours.
