LCD MOD 40DIG 20X2 TRANSMISV WHT

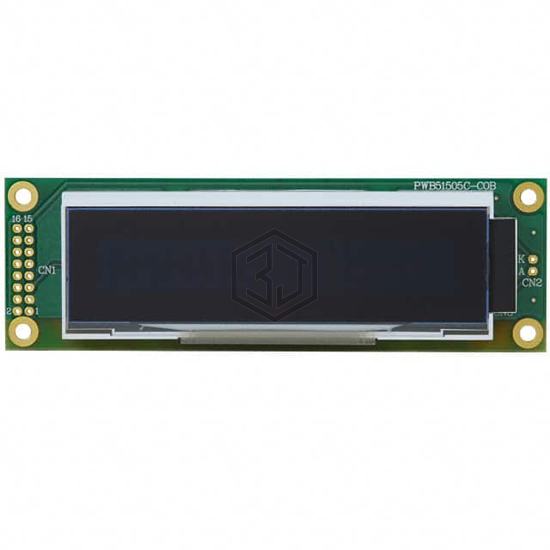

C-51505NFQJ-LW-ALN is a Display Modules - LCD, OLED Character and Numeric manufactured by Kyocera International, Inc.. LCD MOD 40DIG 20X2 TRANSMISV WHT. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 4,494
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Characters | 40 |
| Display Format | 20 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transmissive |
| Character Size | 5.58mm H x 3.23mm W |
| Outline L x W x H | 116.00mm x 37.00mm x 15.60mm |
| Viewing Area | 83.00mm L x 18.60mm W |
| Backlight | LED - White |
| Voltage - Supply | 4.5V ~ 5.5V |
| Dot Size | 0.63mm W x 0.68mm H |
| Interface | Parallel |
| Controller Type | - |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | White |
| Background Color | Black |
