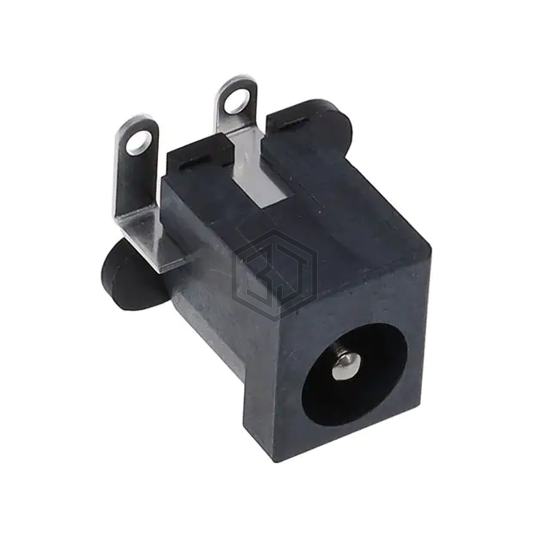

CONN PWR JACK 2X5.5MM VERT SMT
KLDVX-SMT-02-ATR is a Barrel - Power Connectors manufactured by Kycon, Inc.. CONN PWR JACK 2X5.5MM VERT SMT. Key specifications: mounting type Surface Mount, voltage - rated 16VDC, current rating (amps) 3.5 A, termination Solder Eyelet(s).
In Stock: 361
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
| Actual Diameter | 0.079" (2.00mm ID), 0.248" (6.30mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Surface Mount |
| Mounting Feature | Flange |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | - |
| Voltage - Rated | 16VDC |
| Current Rating (Amps) | 3.5 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for KLDVX-SMT-02-ATR and get a quote within 24 hours.
