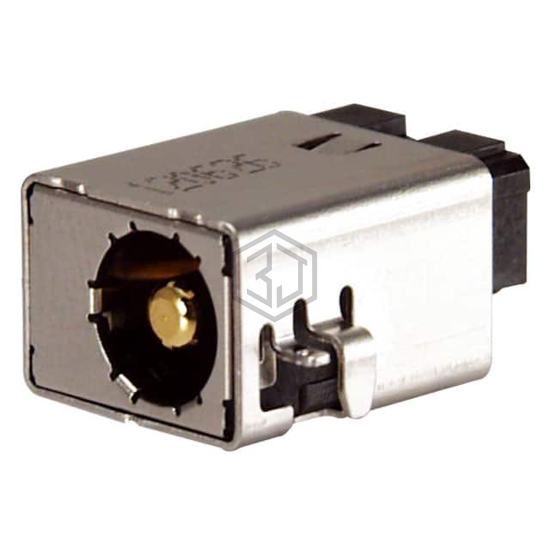

POWER JACK, MID MOUNT 2.0 MM DIA
KLDHCX-MM-0202-ATR is a Barrel - Power Connectors manufactured by Kycon, Inc.. POWER JACK, MID MOUNT 2.0 MM DIA. Key specifications: mounting type Board Cutout, Through Hole, Right Angle, voltage - rated 24VDC, current rating (amps) 5 A, termination Solder.
In Stock: 900
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Actual Diameter | 0.079" (2.00mm ID), 0.236" (6.00mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Board Cutout, Through Hole, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Shielded |
| Features | - |
| Insulation Color | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for KLDHCX-MM-0202-ATR and get a quote within 24 hours.
