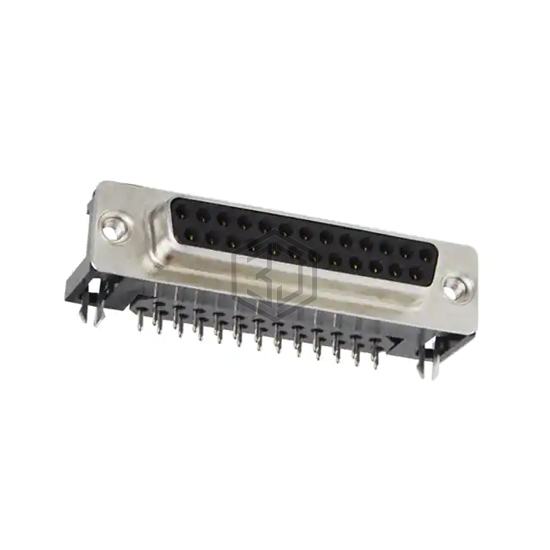

CONN D-SUB RCPT 25POS R/A SLDR
KF22X-B25S-N30 is a D-Sub Connectors manufactured by Kycon, Inc.. CONN D-SUB RCPT 25POS R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 2A, termination Solder, number of positions 25.
In Stock: 7,841
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 3 (DB, B) |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 2A |
| Backset Spacing | 0.318" (8.08mm) |
| Features | Board Lock |
Submit your RFQ for KF22X-B25S-N30 and get a quote within 24 hours.
