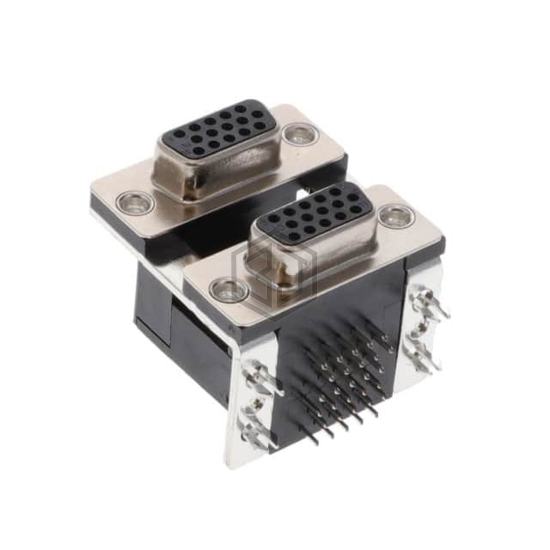

CONN D-SUB HD RCPT 15P R/A SLDR
K42X-E15S/S-A4N is a D-Sub Connectors manufactured by Kycon, Inc.. CONN D-SUB HD RCPT 15P R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 2A, termination Solder, number of positions 15, 15.
In Stock: 1,392
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density - Stacked |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 15, 15 |
| Number of Rows | 3, 3 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 1 (DE, E); 1 (DE, E) High Density |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 2A |
| Backset Spacing | 0.350" (8.89mm) |
| Features | Board Lock, Mounting Brackets |
