CURRENT SENSE RESISTOR

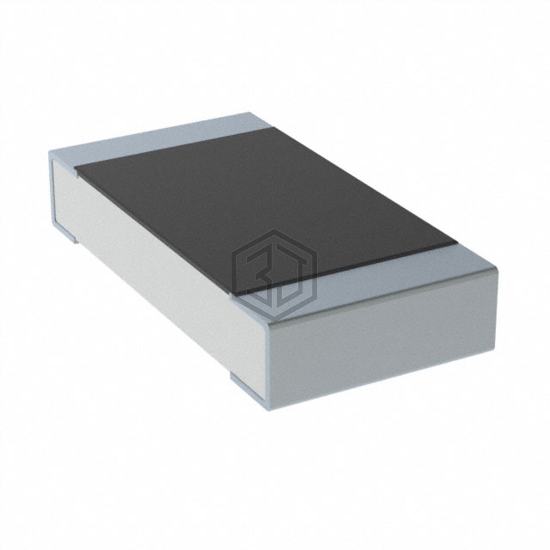

SR732BTTDR560D is a Chip Resistor - Surface Mount manufactured by KOA Speer Electronics, Inc.. CURRENT SENSE RESISTOR. Key specifications: operating temperature -55°C ~ 150°C, package / case 1206 (3216 Metric), size / dimension 0.126" L x 0.063" W (3.20mm x 1.60mm), ratings AEC-Q200.
In Stock: 7,338
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 mOhms |
| Tolerance | ±0.5% |
| Power (Watts) | 0.333W, 1/3W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 150°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ERJ-14RQJR56U | Panasonic Electronic Components | RES 0.56 OHM 5% 1/4W 1210 | 87% | View |
| CHP1206LR560JNT | Vishay Sfernice | CHP 1206 200PPM U56 5% N TR | 87% | View |
| ERJ-8RQFR56V | Panasonic Electronic Components | RES 0.56 OHM 1% 1/4W 1206 | 87% | View |
| ERJ-8BQJR56V | Panasonic Electronic Components | RES 0.56 OHM 5% 1/2W 1206 | 82% | View |
| RCWE0603R560JKEA | Vishay Dale | RES 0.56 OHM 5% 1/5W 0603 | 71% | View |
| FRL0805JR560TS | Fosan | CHIP RESISTORS | 65% | View |
Submit your RFQ for SR732BTTDR560D and get a quote within 24 hours.
