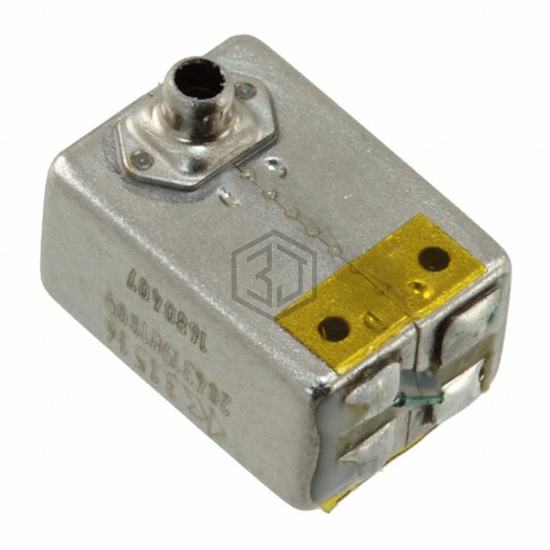

SPEAKER 192OHM SIDE PORT 114DB
HODVTEC-31516-000 is a Speakers manufactured by Knowles. SPEAKER 192OHM SIDE PORT 114DB. Key specifications: size / dimension 0.310" L x 0.161" W (7.87mm x 4.09mm), termination Solder Pads, frequency range 200 Hz ~ 5.95 kHz, impedance 192 Ohms.
In Stock: 3,432
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Receiver, Balanced Armature |
| Frequency Range | 200 Hz ~ 5.95 kHz |
| Frequency - Self Resonant | - |
| Impedance | 192 Ohms |
| Efficiency - dBA | 114.00 |
| Efficiency - Testing | - |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | - |
| Power - Max | - |
| Port Location | Side |
| Shape | Rectangular |
| Material - Cone | - |
| Material - Magnet | - |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.310" L x 0.161" W (7.87mm x 4.09mm) |
| Height - Seated (Max) | 0.310" (7.87mm) |
Submit your RFQ for HODVTEC-31516-000 and get a quote within 24 hours.
