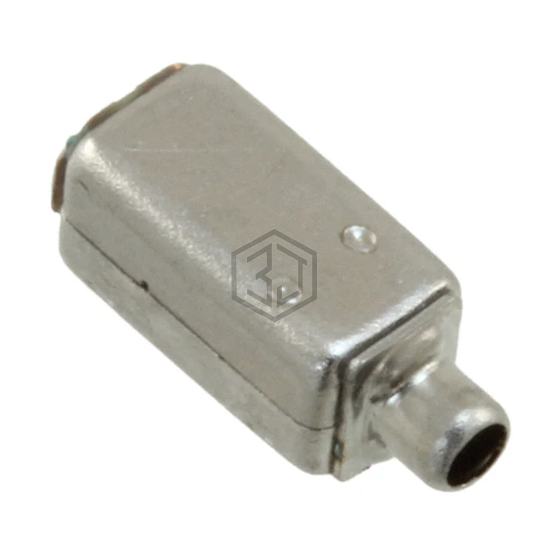

SPEAKER 280OHM SIDE PORT 96DB
FFH-23373-I04 is a Speakers manufactured by Knowles. SPEAKER 280OHM SIDE PORT 96DB. Key specifications: size / dimension 0.201" L x 0.111" W (5.09mm x 2.80mm), termination Solder Pads, frequency range 200 Hz ~ 4.5 kHz, impedance 280 Ohms.
In Stock: 8,778
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Receiver, Balanced Armature |
| Frequency Range | 200 Hz ~ 4.5 kHz |
| Frequency - Self Resonant | - |
| Impedance | 280 Ohms |
| Efficiency - dBA | 96.00 |
| Efficiency - Testing | - |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | - |
| Power - Max | - |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | - |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.201" L x 0.111" W (5.09mm x 2.80mm) |
| Height - Seated (Max) | 0.104" (2.64mm) |
Submit your RFQ for FFH-23373-I04 and get a quote within 24 hours.
