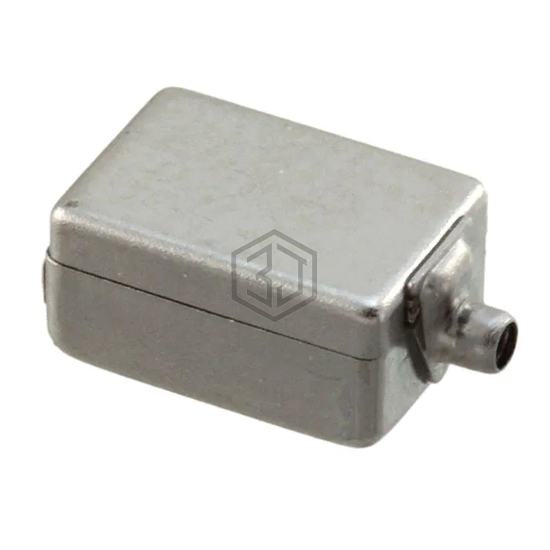

SPEAKER 730OHM SIDE PORT 123DB
BK-21600-000 is a Speakers manufactured by Knowles. SPEAKER 730OHM SIDE PORT 123DB. Key specifications: size / dimension 0.310" L x 0.220" W (7.87mm x 5.59mm), termination Solder Pads, frequency range 200 Hz ~ 3.8 kHz, impedance 730 Ohms.
In Stock: 1,234
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | Receiver, Balanced Armature |
| Frequency Range | 200 Hz ~ 3.8 kHz |
| Frequency - Self Resonant | - |
| Impedance | 730 Ohms |
| Efficiency - dBA | 126.00 |
| Efficiency - Testing | - |
| Efficiency - Type | Sensitivity |
| Power - Rated | - |
| Power - Max | - |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | - |
| Material - Magnet | - |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
| Height - Seated (Max) | 0.310" (7.87mm) |
