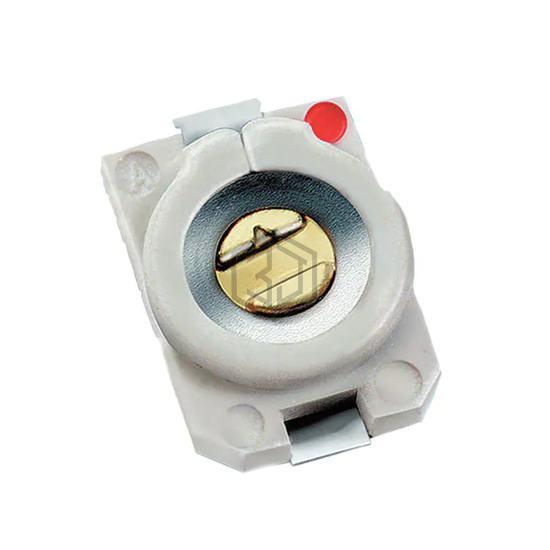

CAP TRIMMER 8-40PF 125V SMD
JZ400 is a Trimmers, Variable Capacitors manufactured by Knowles Voltronics. CAP TRIMMER 8-40PF 125V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 125 V, size / dimension 0.177" L x 0.126" W (4.50mm x 3.20mm).
In Stock: 35,726
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance Range | 8 ~ 40pF |
| Adjustment Type | Top |
| Voltage - Rated | 125 V |
| Dielectric Material | Ceramic |
| Q @ Freq | 1500 @ 1MHz |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.057" (1.45mm) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Features | General Purpose |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| JZ150 | Knowles Voltronics | CAP TRIMMER 3-15PF 125V SMD | 100% | View |
| JZ200 | Knowles Voltronics | CAP TRIMMER 4.5-20PF 125V SMD | 100% | View |
| JR400 | Knowles Voltronics | CAP TRIMMER 8-40PF 125V SMD | 100% | View |
| JR150 | Knowles Voltronics | CAP TRIMMER 3-15PF 125V SMD | 100% | View |
| JZ300 | Knowles Voltronics | CAP TRIMMER 5.5-30PF 125V SMD | 100% | View |
| JR100 | Knowles Voltronics | CAP TRIMMER 2-10PF 125V SMD | 100% | View |
