CAP TRIMMER 2-10PF 350V SMD

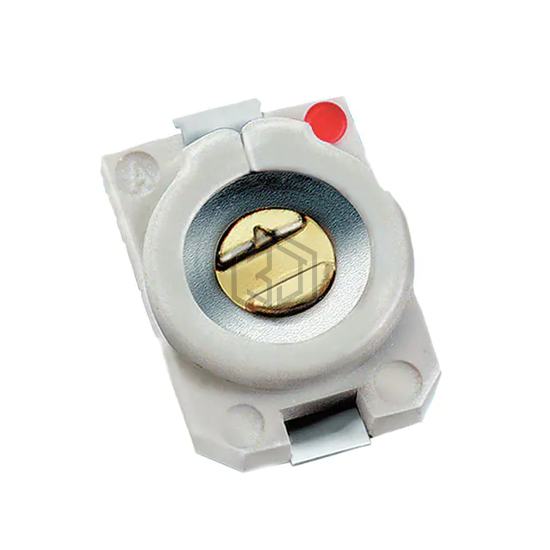

JZ100HV is a Trimmers, Variable Capacitors manufactured by Knowles Voltronics. CAP TRIMMER 2-10PF 350V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, size / dimension 0.177" L x 0.126" W (4.50mm x 3.20mm).
In Stock: 7,231
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance Range | 2 ~ 10pF |
| Adjustment Type | Top |
| Voltage - Rated | 350 V |
| Dielectric Material | Ceramic |
| Q @ Freq | 1500 @ 1MHz |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.057" (1.45mm) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Features | General Purpose |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| JZ400HV | Knowles Voltronics | CAP TRIMMER 8-40PF 350V SMD | 100% | View |
| JZ200HV | Knowles Voltronics | CAP TRIMMER 4.5-20PF 350V SMD | 100% | View |
| JZ030HV | Knowles Voltronics | CAP TRIMMER 1.5-3PF 350V SMD | 100% | View |
| JZ060HV | Knowles Voltronics | CAP TRIMMER 2-6PF 350V SMD | 100% | View |
| JZ300HV | Knowles Voltronics | CAP TRIMMER 5.5-30PF 350V SMD | 100% | View |
| 9702-0SL-1 | Knowles Johanson Manufacturing | CAP TRIMMER 0.5-2.5PF 250V SMD | 51% | View |
