LED RED/YELLOW DIFFUSED T-1 T/H

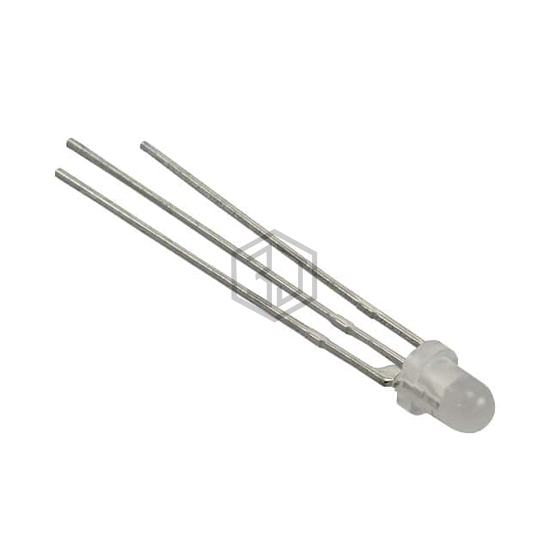

WP3VEYW is a LED Indication - Discrete manufactured by Kingbright. LED RED/YELLOW DIFFUSED T-1 T/H. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 2V Red, 2.1V Yellow, package / case Radial - 3 Leads, color Red, Yellow.
In Stock: 19,890
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Yellow |
| Configuration | Common Cathode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 30mcd Red, 15mcd Yellow |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.1V Yellow |
| Current - Test | 20mA Red, 20mA Yellow |
| Viewing Angle | 60° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 617nm Red, 588nm Yellow |
| Wavelength - Peak | 627nm Red, 590nm Yellow |
| Features | - |
| Package / Case | Radial - 3 Leads |
| Supplier Device Package | T-1 |
| Size / Dimension | - |
| Height (Max) | 6.93mm |
Submit your RFQ for WP3VEYW and get a quote within 24 hours.
