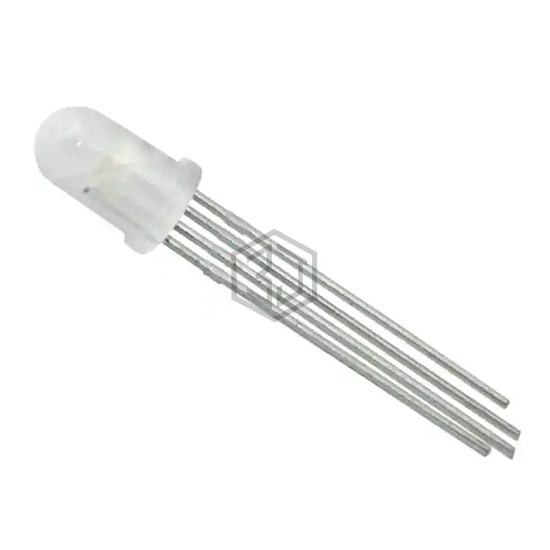

LED RGB DIFFUSED T-1 3/4 T/H
WP154A4SUREQBFZGW is a LED Indication - Discrete manufactured by Kingbright. LED RGB DIFFUSED T-1 3/4 T/H. Key specifications: mounting type Through Hole, voltage - forward (vf) (typ) 1.9V Red, 3.3V Green, 3.3V Blue, package / case Radial - 4 Leads, color Red, Green, Blue (RGB).
In Stock: 14,612
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Cathode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 250mcd Red, 1300mcd Green, 500mcd Blue |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 60° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 630nm Red, 525nm Green, 465nm Blue |
| Wavelength - Peak | 640nm Red, 515nm Green, 460nm Blue |
| Features | - |
| Package / Case | Radial - 4 Leads |
| Supplier Device Package | T-1 3/4 |
| Size / Dimension | - |
| Height (Max) | 8.60mm |
Submit your RFQ for WP154A4SUREQBFZGW and get a quote within 24 hours.
