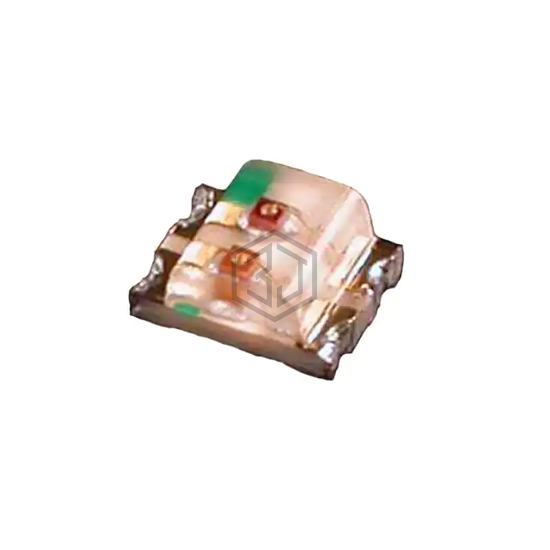

LED GREEN/RED CLEAR CHIP SMD
APTB1612ESGC-F01 is a LED Indication - Discrete manufactured by Kingbright. LED GREEN/RED CLEAR CHIP SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.2V Green, 2V Red, package / case 0605 (1613 Metric), color Green, Red.
In Stock: 44,635
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 12mcd Green, 7mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 568nm Green, 617nm Red |
| Wavelength - Peak | 565nm Green, 627nm Red |
| Features | - |
| Package / Case | 0605 (1613 Metric) |
| Supplier Device Package | Chip LED |
| Size / Dimension | 1.60mm L x 1.25mm W |
| Height (Max) | 0.65mm |
