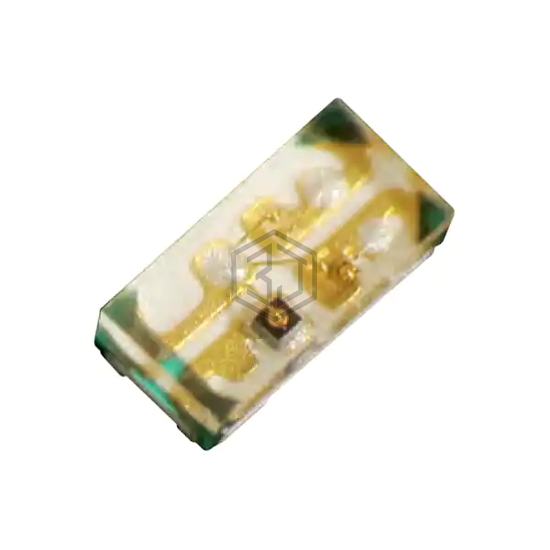

LED RGB CLEAR 4SMD
APHF1608LSEEQBDZGKC is a LED Indication - Discrete manufactured by Kingbright. LED RGB CLEAR 4SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.8V Red, 2.65V Green, 2.65V Blue, package / case 4-SMD, No Lead, color Red, Green, Blue (RGB).
In Stock: 83,854
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 15mcd Red, 70mcd Green, 10mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 1.8V Red, 2.65V Green, 2.65V Blue |
| Current - Test | 2mA Red, 2mA Green, 2mA Blue |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 621nm Red, 525nm Green, 465nm Blue |
| Wavelength - Peak | 630nm Red, 515nm Green, 460nm Blue |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.60mm |
