LED GREEN/RED CLEAR CHIP SMD

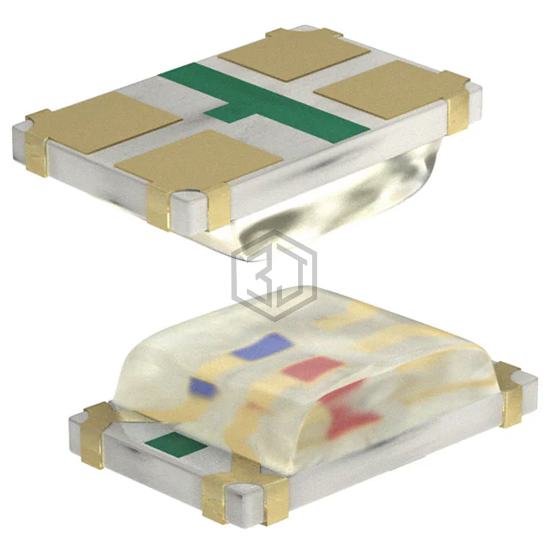

APHBM2012SURKZGC is a LED Indication - Discrete manufactured by Kingbright. LED GREEN/RED CLEAR CHIP SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 3.3V Green, 1.95V Red, package / case 0805 (2012 Metric), color Green, Red.
In Stock: 59,649
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 300mcd Green, 80mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.30mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 3.3V Green, 1.95V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 525nm Green, 630nm Red |
| Wavelength - Peak | 515nm Green, 650nm Red |
| Features | - |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | Chip LED |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Height (Max) | 0.45mm |
Submit your RFQ for APHBM2012SURKZGC and get a quote within 24 hours.
