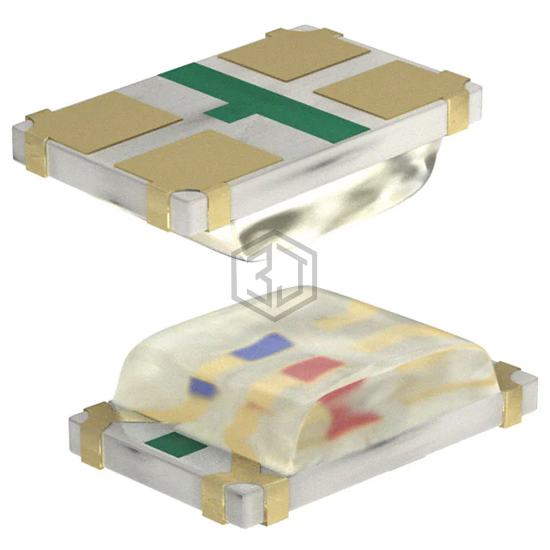

LED GREEN/RED CLEAR 4SMD
APHBM2012LSURKZGKC is a LED Indication - Discrete manufactured by Kingbright. LED GREEN/RED CLEAR 4SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.7V Green, 1.8V Red, package / case 0805 (2012 Metric), color Green, Red.
In Stock: 33,251
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 90mcd Green, 10mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 2.7V Green, 1.8V Red |
| Current - Test | 2mA Green, 2mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 525nm Green, 630nm Red |
| Wavelength - Peak | 515nm Green, 645nm Red |
| Features | - |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Height (Max) | 0.45mm |
Submit your RFQ for APHBM2012LSURKZGKC and get a quote within 24 hours.
