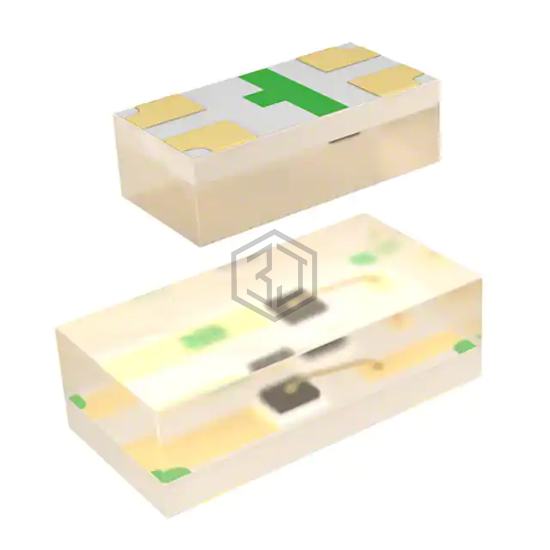

LED BLUE/GREEN CLEAR 4SMD
APHB1608QBDCGKC is a LED Indication - Discrete manufactured by Kingbright. LED BLUE/GREEN CLEAR 4SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 3.3V Blue, 2.1V Green, package / case 0603 (1608 Metric), color Blue, Green.
In Stock: 14,811
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Blue, Green |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 70mcd Blue, 50mcd Green |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 3.3V Blue, 2.1V Green |
| Current - Test | 20mA Blue, 20mA Green |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 465nm Blue, 570nm Green |
| Wavelength - Peak | 460nm Blue, 574nm Green |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.65mm |
Submit your RFQ for APHB1608QBDCGKC and get a quote within 24 hours.
