LED RGB CLEAR 4SMD R/A

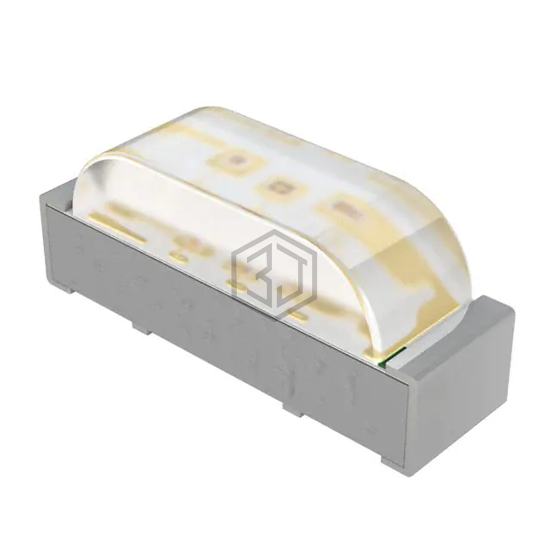

APFA2507QBDSEEZGKC is a LED Indication - Discrete manufactured by Kingbright. LED RGB CLEAR 4SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, voltage - forward (vf) (typ) 2V Red, 3.3V Green, 3.3V Blue, package / case 4-SMD, No Lead, color Red, Green, Blue (RGB).
In Stock: 53,455
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 110mcd Red, 400mcd Green, 65mcd Blue |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.10mm x 0.70mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 110° Red, 130° Green, 140° Blue |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 621nm Red, 525nm Green, 465nm Blue |
| Wavelength - Peak | 630nm Red, 515nm Green, 460nm Blue |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 2.50mm L x 1.00mm W |
| Height (Max) | 0.85mm |
