LED GREEN/RED/YLW CLEAR 4SMD R/A

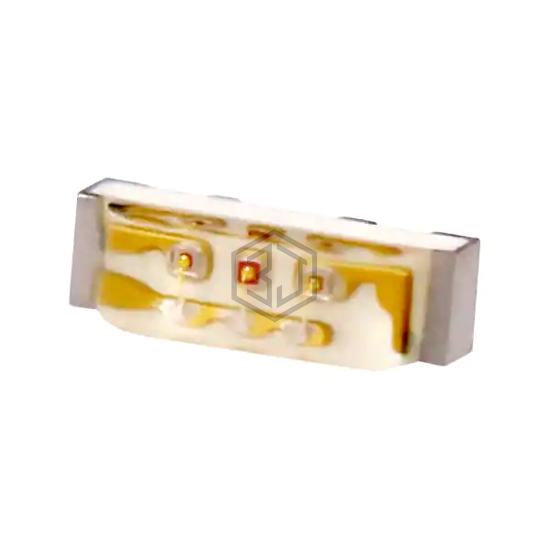

APFA2507LSURKSYKZGKC is a LED Indication - Discrete manufactured by Kingbright. LED GREEN/RED/YLW CLEAR 4SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, voltage - forward (vf) (typ) 2.65V Green, 1.75V Red, 1.85V Yellow, package / case 4-SMD, No Lead, color Green, Red, Yellow.
In Stock: 8,775
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red, Yellow |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 60mcd Green, 30mcd Red, 15mcd Yellow |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.10mm x 0.70mm |
| Voltage - Forward (Vf) (Typ) | 2.65V Green, 1.75V Red, 1.85V Yellow |
| Current - Test | 2mA Green, 2mA Red, 2mA Yellow |
| Viewing Angle | 125° Green, 130° Red, 115° Yellow |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 525nm Green, 630nm Red, 590nm Yellow |
| Wavelength - Peak | 515nm Green, 645nm Red, 590nm Yellow |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 2.50mm L x 1.00mm W |
| Height (Max) | 0.85mm |
Submit your RFQ for APFA2507LSURKSYKZGKC and get a quote within 24 hours.
