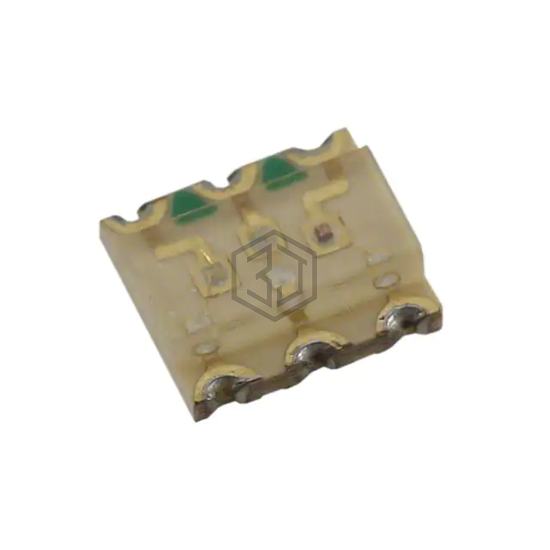

LED RGB CLEAR 6SMD
APF3236LSEEZGKQBKC is a LED Indication - Discrete manufactured by Kingbright. LED RGB CLEAR 6SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V Red, 3.1V Green, 3.1V Blue, package / case 6-SMD, No Lead, color Red, Green, Blue (RGB).
In Stock: 34,089
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 15mcd Red, 60mcd Green, 10mcd Blue |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 3.60mm x 1.90mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.1V Green, 3.1V Blue |
| Current - Test | 2mA Red, 2mA Green, 2mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 621nm Red, 525nm Green, 465nm Blue |
| Wavelength - Peak | 630nm Red, 515nm Green, 460nm Blue |
| Features | - |
| Package / Case | 6-SMD, No Lead |
| Supplier Device Package | 6-SMD |
| Size / Dimension | 3.60mm L x 3.20mm W |
| Height (Max) | 1.30mm |
Submit your RFQ for APF3236LSEEZGKQBKC and get a quote within 24 hours.
