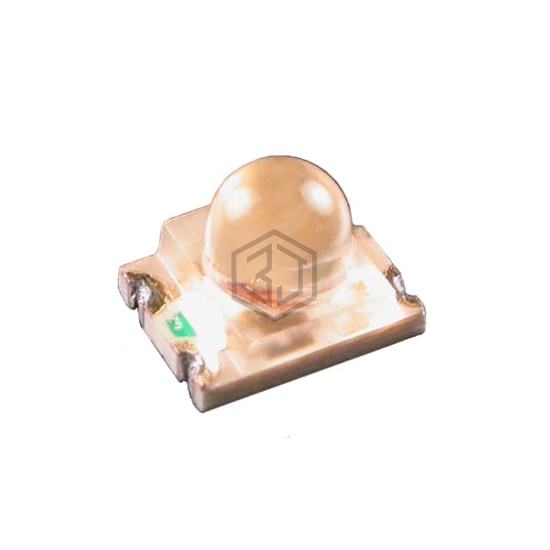

LED RED/YELLOW CLEAR 4SMD
APBD3224LSURKSYKC is a LED Indication - Discrete manufactured by Kingbright. LED RED/YELLOW CLEAR 4SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 1.8V Red, 1.9V Yellow, package / case 1209 (3224 Metric), color Red, Yellow.
In Stock: 17,721
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Yellow |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 30mcd Red, 50mcd Yellow |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
| Voltage - Forward (Vf) (Typ) | 1.8V Red, 1.9V Yellow |
| Current - Test | 2mA Red, 2mA Yellow |
| Viewing Angle | 20° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 630nm Red, 590nm Yellow |
| Wavelength - Peak | 645nm Red, 590nm Yellow |
| Features | - |
| Package / Case | 1209 (3224 Metric) |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 3.20mm L x 2.40mm W |
| Height (Max) | 2.50mm |
Submit your RFQ for APBD3224LSURKSYKC and get a quote within 24 hours.
