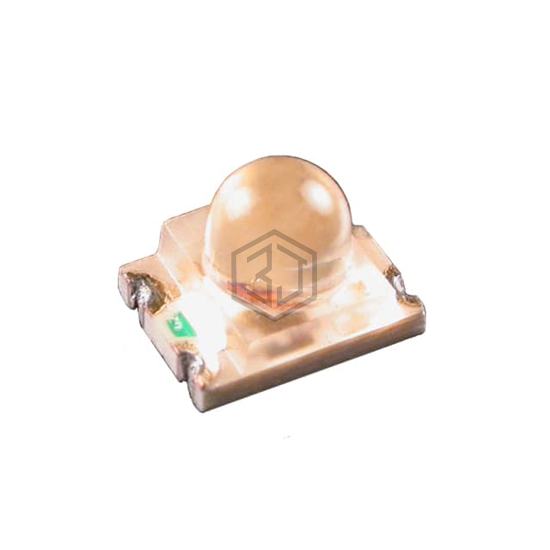

LED GREEN/RED CLEAR SMD
APBD3224ESGC-F01 is a LED Indication - Discrete manufactured by Kingbright. LED GREEN/RED CLEAR SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.2V Green, 2V Red, package / case 1210 (3225 Metric), color Green, Red.
In Stock: 302,853
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 55mcd Green, 40mcd Red |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 20° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 568nm Green, 617nm Red |
| Wavelength - Peak | 565nm Green, 627nm Red |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | SMD |
| Size / Dimension | 3.20mm L x 2.40mm W |
| Height (Max) | 2.40mm |
Submit your RFQ for APBD3224ESGC-F01 and get a quote within 24 hours.
