LED BLUE/GREEN CLEAR SMD

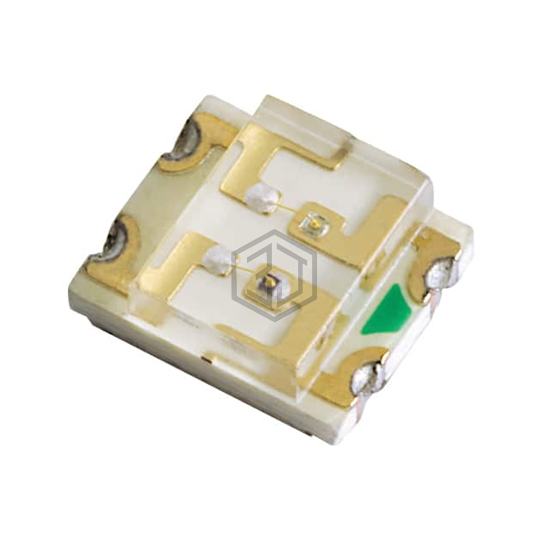

APB3227ZGKQBDC is a LED Indication - Discrete manufactured by Kingbright. LED BLUE/GREEN CLEAR SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 3.3V Blue, 3.3V Green, package / case 1210 (3225 Metric), color Blue, Green.
In Stock: 8,201
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Blue, Green |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 100mcd Blue, 350mcd Green |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.70mm x 2.00mm |
| Voltage - Forward (Vf) (Typ) | 3.3V Blue, 3.3V Green |
| Current - Test | 20mA Blue, 20mA Green |
| Viewing Angle | 100° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 465nm Blue, 525nm Green |
| Wavelength - Peak | 460nm Blue, 515nm Green |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | SMD |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.10mm |
