LED GREEN/RED CLEAR 4SMD

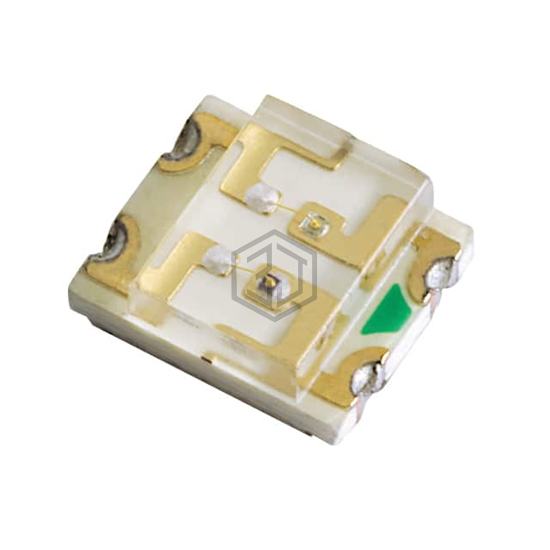

APB3227SURKZGKC is a LED Indication - Discrete manufactured by Kingbright. LED GREEN/RED CLEAR 4SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 3.3V Green, 1.95V Red, package / case 1210 (3225 Metric), color Green, Red.
In Stock: 35,404
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 350mcd Green, 250mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.70mm x 2.00mm |
| Voltage - Forward (Vf) (Typ) | 3.3V Green, 1.95V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 100° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 525nm Green, 630nm Red |
| Wavelength - Peak | 515nm Green, 645nm Red |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.20mm |
Submit your RFQ for APB3227SURKZGKC and get a quote within 24 hours.
