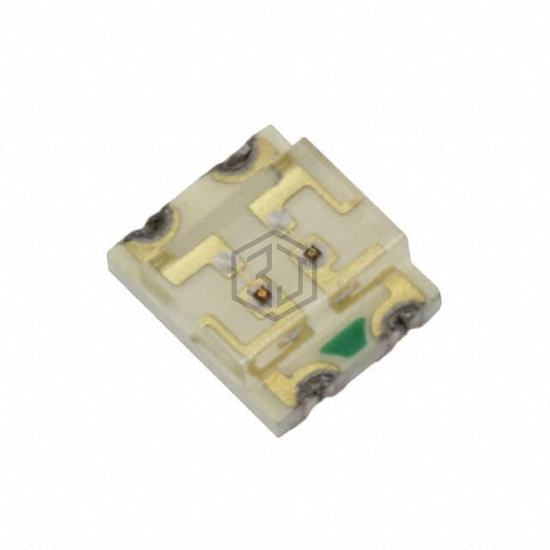

LED GREEN/ORANGE CLEAR SMD
APB3227SEKCGKC is a LED Indication - Discrete manufactured by Kingbright. LED GREEN/ORANGE CLEAR SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.1V Green, 2.1V Orange, package / case 1210 (3225 Metric), color Green, Orange.
In Stock: 4,776
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Orange |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 55mcd Green, 180mcd Orange |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 2.70mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2.1V Orange |
| Current - Test | 20mA Green, 20mA Orange |
| Viewing Angle | 100° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 570nm Green, 601nm Orange |
| Wavelength - Peak | 574nm Green, 610nm Orange |
| Features | - |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | SMD |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 1.10mm |
Submit your RFQ for APB3227SEKCGKC and get a quote within 24 hours.
