LED RED/YELLOW CLEAR 4SMD

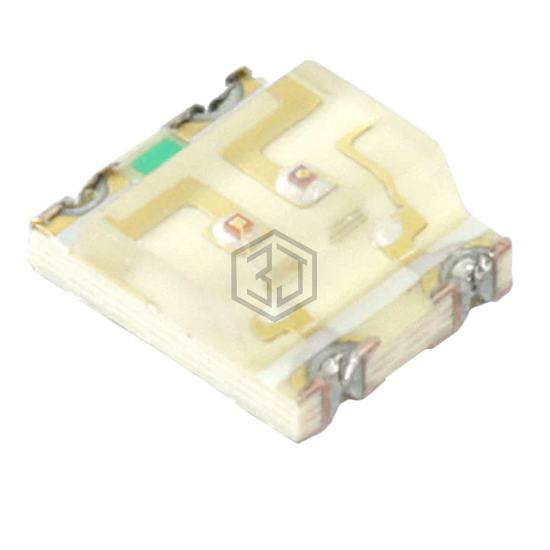

APB3025EYC-F01 is a LED Indication - Discrete manufactured by Kingbright. LED RED/YELLOW CLEAR 4SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 2.1V Yellow, package / case 4-SMD, No Lead, color Red, Yellow.
In Stock: 6,389
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Yellow |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 8mcd Red, 10mcd Yellow |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 2.50mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.1V Yellow |
| Current - Test | 20mA Red, 20mA Yellow |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 617nm Red, 588nm Yellow |
| Wavelength - Peak | 627nm Red, 590nm Yellow |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 3.00mm L x 2.50mm W |
| Height (Max) | 1.10mm |
Submit your RFQ for APB3025EYC-F01 and get a quote within 24 hours.
