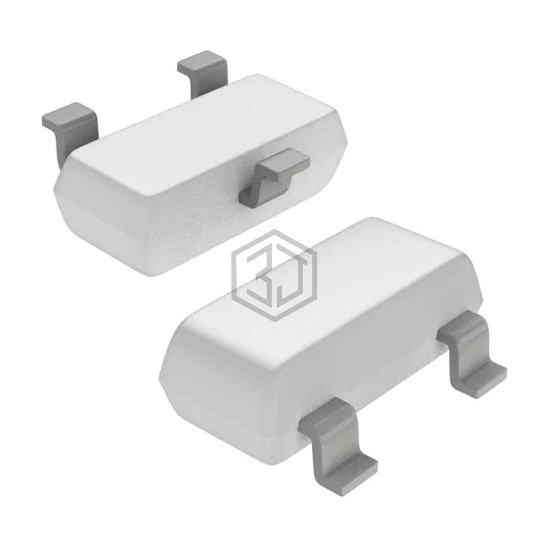

LED GREEN/RED CLEAR SOT23-3 SMD
AM23ESGC is a LED Indication - Discrete manufactured by Kingbright. LED GREEN/RED CLEAR SOT23-3 SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.2V Green, 2V Red, package / case TO-236-3, SC-59, SOT-23-3, color Green, Red.
In Stock: 6,230
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Green, Red |
| Configuration | Common Cathode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 10mcd Green, 5mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 3.00mm x 1.30mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 568nm Green, 617nm Red |
| Wavelength - Peak | 565nm Green, 627nm Red |
| Features | - |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Size / Dimension | 3.00mm L x 1.30mm W |
| Height (Max) | 1.20mm |
Submit your RFQ for AM23ESGC and get a quote within 24 hours.
