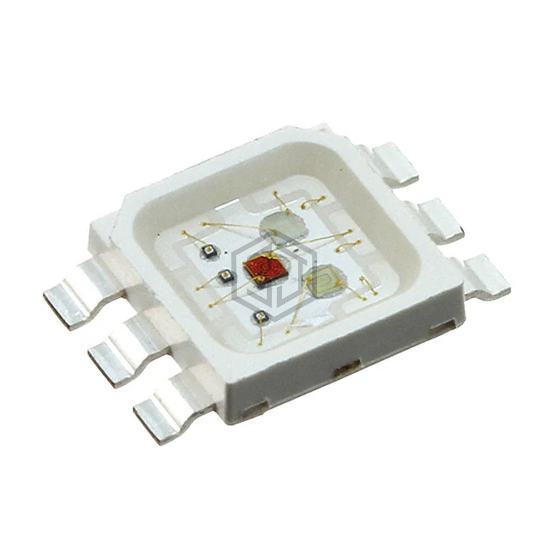

LED RGB CLEAR 6SMD
AAAF5051-05 is a LED Indication - Discrete manufactured by Kingbright. LED RGB CLEAR 6SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2.3V Red, 3.3V Green, 3.3V Blue, package / case 6-SMD, Gull Wing, color Red, Green, Blue (RGB).
In Stock: 12,586
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 4000mcd Red, 9000mcd Green, 2300mcd Blue |
| Lens Style | Square with Flat Top |
| Lens Size | 4.25mm |
| Voltage - Forward (Vf) (Typ) | 2.3V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 150mA Red, 150mA Green, 150mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 624nm Red, 525nm Green, 460nm Blue |
| Wavelength - Peak | 633nm Red, 515nm Green, 452nm Blue |
| Features | - |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | 6-SMD |
| Size / Dimension | 5.00mm L x 5.00mm W |
| Height (Max) | 1.40mm |
Submit your RFQ for AAAF5051-05 and get a quote within 24 hours.
