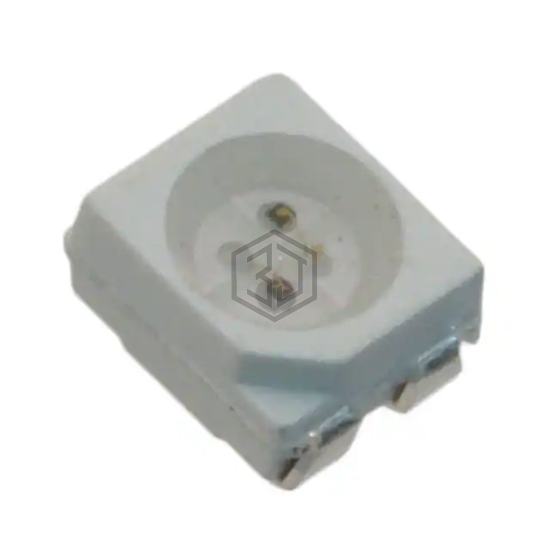

LED RGB CLEAR 4SMD
AAA3528SEEZGKQBKS is a LED Indication - Discrete manufactured by Kingbright. LED RGB CLEAR 4SMD. Key specifications: mounting type Surface Mount, voltage - forward (vf) (typ) 2V Red, 3.3V Green, 3.3V Blue, package / case 4-PLCC, color Red, Green, Blue (RGB).
In Stock: 28,811
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 220mcd Red, 500mcd Green, 100mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.3V Green, 3.3V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 621nm Red, 525nm Green, 465nm Blue |
| Wavelength - Peak | 630nm Red, 515nm Green, 460nm Blue |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm |
