TERM TURRET SINGLE L=9.14MM TIN

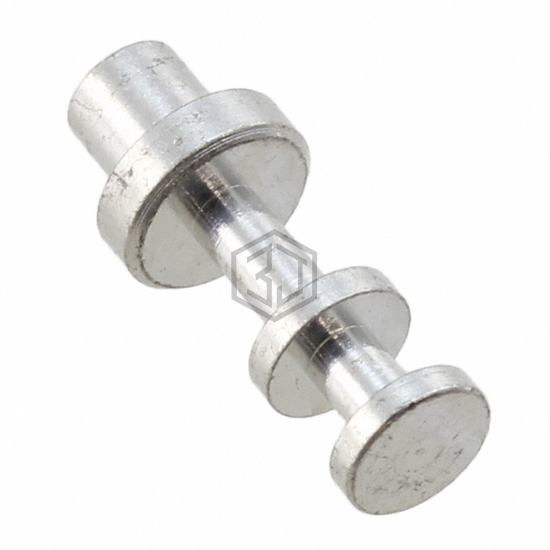

1503-2 is a Terminals - Turret Connectors manufactured by Keystone Electronics. TERM TURRET SINGLE L=9.14MM TIN. Key specifications: mounting type Through Hole, contact material Brass, termination Staking Flare.
In Stock: 4,205
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | Single End |
| Number of Turrets | Double |
| Length - Above Board | 0.360" (9.14mm) |
| Length - Below Flange | 0.109" (2.77mm) |
| Length - Overall | 0.469" (11.90mm) |
| Mounting Type | Through Hole |
| Termination | Staking Flare |
| Flange Diameter | 0.187" (4.75mm) |
| Diameter - Turret Head | 0.145" (3.68mm) |
| Staking Side OD | 0.112" (2.84mm) |
| Staking Side ID | - |
| Mounting Hole Diameter | 0.116" (2.95mm) |
| Board Thickness | 0.062" (1.57mm) |
| Contact Material | Brass |
| Contact Finish | Tin |
| Contact Finish Thickness | - |
| Insulation | Non-Insulated |
Submit your RFQ for 1503-2 and get a quote within 24 hours.
