SH-101
CMC 3A 2LN TH

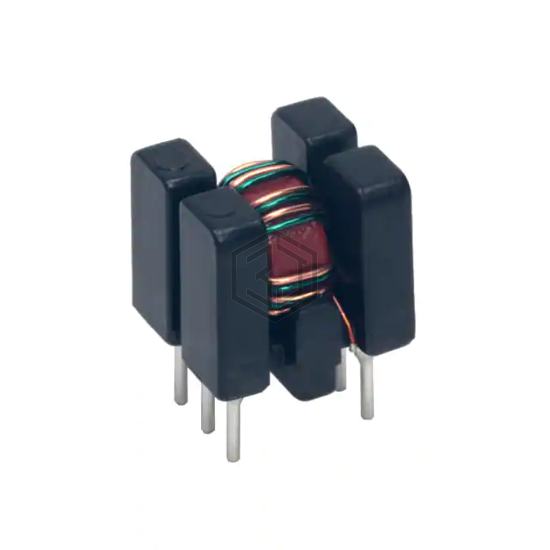

SH-101 is a Common Mode Chokes manufactured by KEMET. CMC 3A 2LN TH. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 80°C, voltage rating - dc 150V, package / case Vertical, 4 PC Pin.
In Stock: 166
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | - |
| Current Rating (Max) | 3A |
| DC Resistance (DCR) (Max) | 16mOhm |
| Voltage Rating - DC | 150V |
| Voltage Rating - AC | - |
| Operating Temperature | -25°C ~ 80°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | - |
| Height (Max) | 0.472" (12.00mm) |
| Package / Case | Vertical, 4 PC Pin |
Frequently Asked Questions
SH-101 is a Common Mode Chokes manufactured by KEMET. CMC 3A 2LN TH
The mounting type of SH-101 is Through Hole.
The operating temperature range of SH-101 is -25°C ~ 80°C.
The supply voltage of SH-101 is 150V.
The filter type of SH-101 is Power Line.
