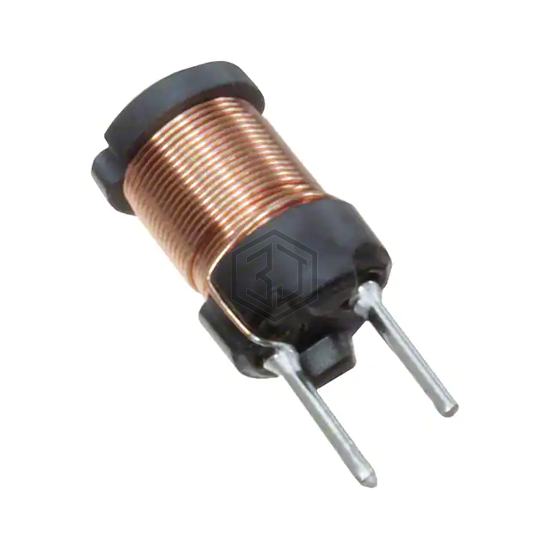

FIXED IND 33UH 870MA 169 MOHM TH
SBCP-47HY330B is a Fixed Inductors manufactured by KEMET. FIXED IND 33UH 870MA 169 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 105°C, package / case Radial, Vertical Cylinder (Open), current rating (amps) 870 mA.
In Stock: 597
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 870 mA |
| Current - Saturation (Isat) | 870mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 169mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -20°C ~ 105°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
Submit your RFQ for SBCP-47HY330B and get a quote within 24 hours.
