FIXED IND 10UH 1.6A 67 MOHM TH

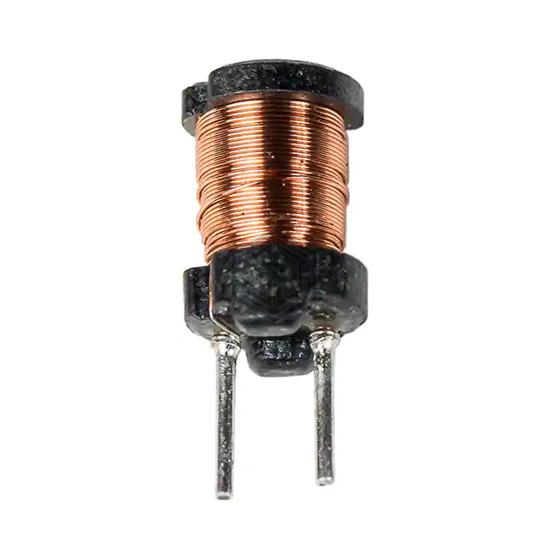

SBCP-47HY100B is a Fixed Inductors manufactured by KEMET. FIXED IND 10UH 1.6A 67 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 105°C, package / case Radial, Vertical Cylinder (Open), current rating (amps) 1.6 A.
In Stock: 2,359
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.6 A |
| Current - Saturation (Isat) | 1.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 67mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -20°C ~ 105°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
Submit your RFQ for SBCP-47HY100B and get a quote within 24 hours.
