FIXED IND 10MH 170MA 10.86OHM TH

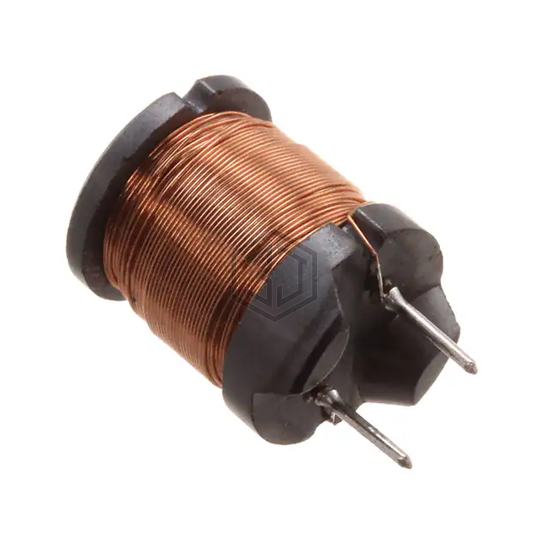

SBCP-14HY103B is a Fixed Inductors manufactured by KEMET. FIXED IND 10MH 170MA 10.86OHM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 105°C, package / case Radial, Vertical Cylinder (Open), current rating (amps) 170 mA.
In Stock: 1,468
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 170 mA |
| Current - Saturation (Isat) | 310mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 10.86Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -20°C ~ 105°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.472" Dia (12.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
Submit your RFQ for SBCP-14HY103B and get a quote within 24 hours.
