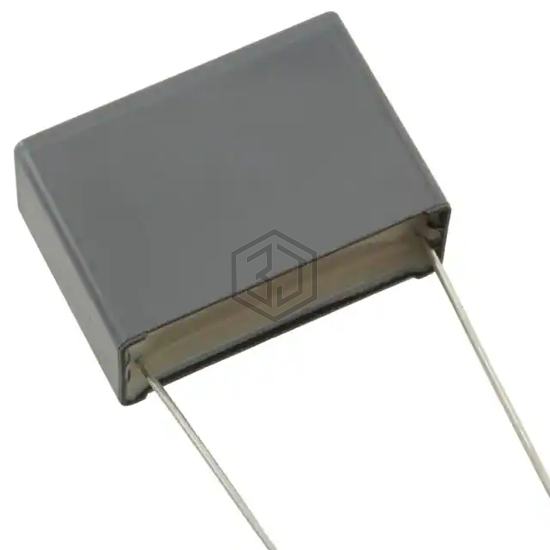

CAP FILM 5600PF 5% 1.25KVDC RAD
R75RF15605040J is a Film Capacitors manufactured by KEMET. CAP FILM 5600PF 5% 1.25KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 1250V (1.25kV), package / case Radial.
In Stock: 1,454
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 450V |
| Voltage Rating - DC | 1250V (1.25kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 142.1 mOhms |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.197" W (13.00mm x 5.00mm) |
| Height - Seated (Max) | 0.437" (11.10mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | Automotive; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | AEC-Q200 |
| Features | - |
Submit your RFQ for R75RF15605040J and get a quote within 24 hours.
