FILM, RADIAL, PULSE, SINGLE META

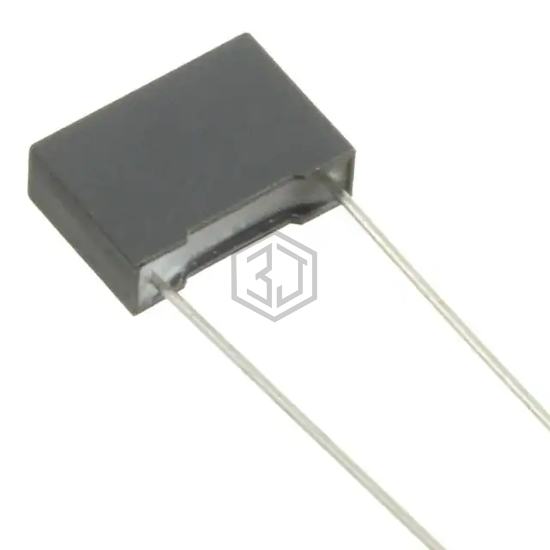

R71PF322050H6M is a Film Capacitors manufactured by KEMET. FILM, RADIAL, PULSE, SINGLE META. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage rating - dc 630V, package / case Radial.
In Stock: 66
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.22 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 220V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 90 mOhms |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.236" W (13.00mm x 6.00mm) |
| Height - Seated (Max) | 0.476" (12.10mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) |
| Ratings | AEC-Q200 |
| Features | - |
Submit your RFQ for R71PF322050H6M and get a quote within 24 hours.
