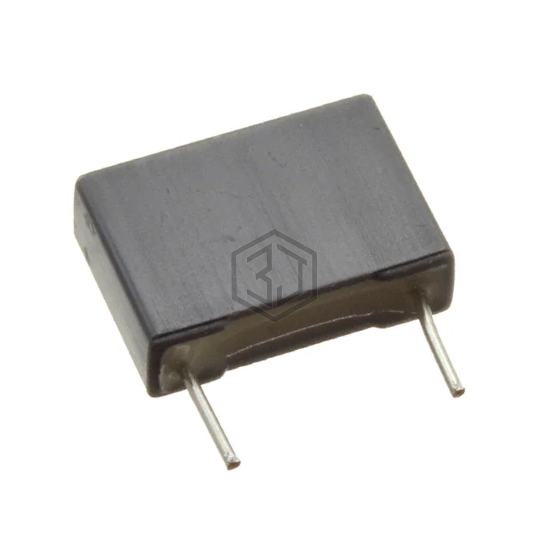

CAP FILM 10000PF 10% 630VDC RAD
R60PF21005030K is a Film Capacitors manufactured by KEMET. CAP FILM 10000PF 10% 630VDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 4,394
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | 220V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.157" W (13.00mm x 4.00mm) |
| Height - Seated (Max) | 0.358" (9.10mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | Automotive |
| Ratings | AEC-Q200 |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| R66PD2100DQ7AK | KEMET | CAP FILM METAL RAD POLYESTER | 100% | View |
| BFC236952103 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10000PF 5% 400VDC RAD | 94% | View |
| BFC233861103 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10000PF 10% 1KVDC RAD | 89% | View |
| BFC233868111 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10000PF 20% 1KVDC RAD | 89% | View |
| MKT1817310256D | Vishay Beyschlag/Draloric/BC Components | CAP FILM 10000PF 20% 250VDC RAD | 83% | View |
| PPB2202100KGS | Nichicon | FILM CAP BOXED RADIAL | 68% | View |
Submit your RFQ for R60PF21005030K and get a quote within 24 hours.
