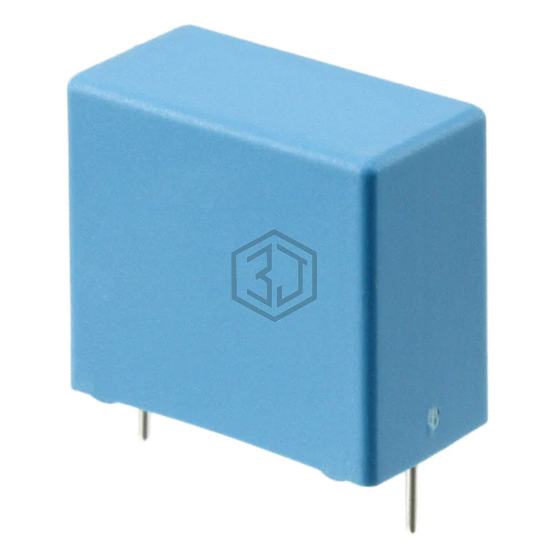

CAP FILM 0.022UF 5% 3KVDC RADIAL
PHE450XD5220JD20R06L2 is a Film Capacitors manufactured by KEMET. CAP FILM 0.022UF 5% 3KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 3000V (3kV), package / case Radial.
In Stock: 2,778
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.022 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 1000V (1kV) |
| Voltage Rating - DC | 3000V (3kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.024" L x 0.531" W (26.00mm x 13.50mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP383322250JKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 2.5KVDC RAD | 96% | View |
| PPB2202220KGL | Nichicon | FILM CAP BOXED RADIAL | 89% | View |
| F340Y232230MFP2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 20% 1KVDC RAD | 68% | View |
| B32529C8223J000 | EPCOS - TDK Electronics | CAP FILM 0.022UF 5% 630VDC RAD | 66% | View |
| F339MX232231JF02W0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.022UF 5% 630VDC RAD | 62% | View |
| 171223J630F-F | Cornell Dubilier Electronics (CDE) | CAP FILM 0.022UF 5% 630VDC RAD | 59% | View |
Submit your RFQ for PHE450XD5220JD20R06L2 and get a quote within 24 hours.
