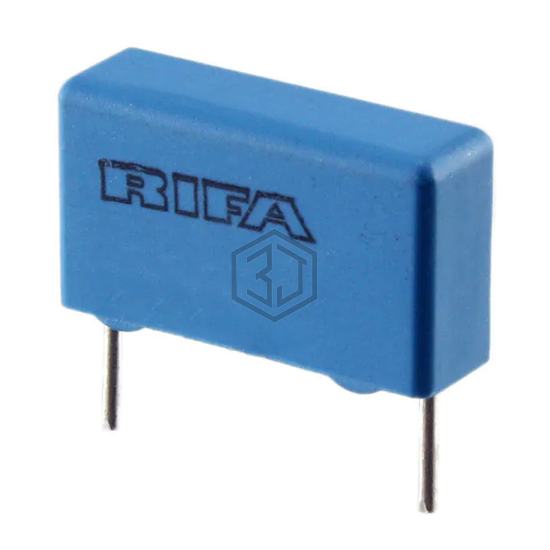

CAP FILM 1000PF 5% 2KVDC RADIAL
PHE450SB4100JR06 is a Film Capacitors manufactured by KEMET. CAP FILM 1000PF 5% 2KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 2000V (2kV), package / case Radial.
In Stock: 8,517
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709" L x 0.217" W (18.00mm x 5.50mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP383210200JFM2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 5% 2KVDC RADIAL | 100% | View |
| BFC238554103 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 5% 1.6KVDC RAD | 94% | View |
| BFC233861102 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 10% 1KVDC RADIAL | 79% | View |
| BFC233867102 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 10% 1KVDC RADIAL | 79% | View |
| F339MX221031JCI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 5% 630VDC RADIAL | 73% | View |
| BFC2370GB103 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 10% 630VDC RAD | 68% | View |
Submit your RFQ for PHE450SB4100JR06 and get a quote within 24 hours.
