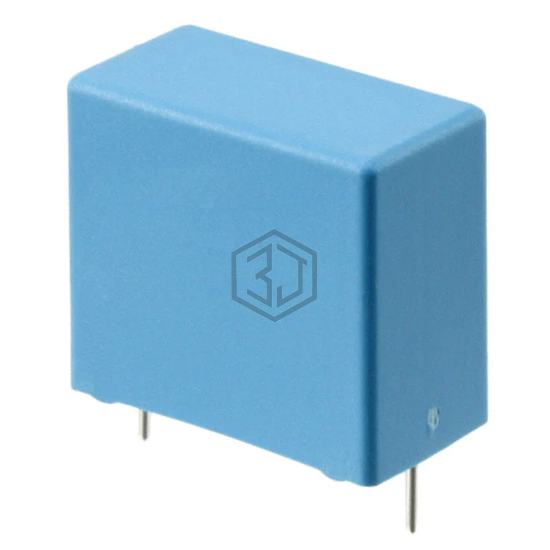

CAP FILM 0.15UF 5% 1.6KVDC RAD
PHE450RD6150JR06L2 is a Film Capacitors manufactured by KEMET. CAP FILM 0.15UF 5% 1.6KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 1600V (1.6kV), package / case Radial.
In Stock: 7,231
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.15 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 650V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.024" L x 0.531" W (26.00mm x 13.50mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| F340Y241530JKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.15UF 5% 1KVDC RAD | 83% | View |
| MKP385415085JIM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.15UF 5% 850VDC RADIAL | 81% | View |
| F339MX241531JFI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.15UF 5% 630VDC RADIAL | 77% | View |
| F339MX241531KII2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.15UF 10% 630VDC RAD | 77% | View |
| BFC247945154 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.15UF 5% 250VDC RADIAL | 58% | View |
| BFC236929154 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.15UF 5% 100VDC RADIAL | 56% | View |
