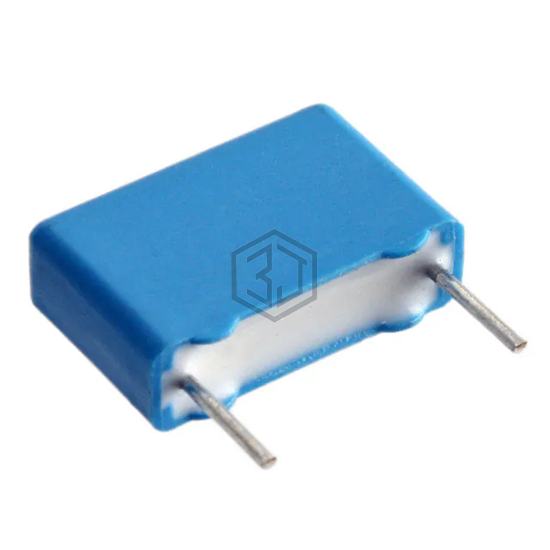

CAP FILM 1000PF 5% 1KVDC RADIAL
PHE450PA4100JR05 is a Film Capacitors manufactured by KEMET. CAP FILM 1000PF 5% 1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 1000V (1kV), package / case Radial.
In Stock: 5,146
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 600V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.157" W (13.00mm x 4.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKS4O111002B00MA00 | WIMA | CAP FILM 1000PF 20% 1KVDC RADIAL | 94% | View |
| F339MX221031JD02G0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 5% 630VDC RADIAL | 85% | View |
| 184102K630RAA-F | Cornell Dubilier Electronics (CDE) | CAP FILM 1000PF 10% 630VDC RAD | 80% | View |
| BFC247056103 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 5% 400VDC RADIAL | 72% | View |
| BFC237178103 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 10% 250VDC RAD | 63% | View |
| MKT1817210015W | Vishay Beyschlag/Draloric/BC Components | CAP FILM 1000PF 10% 100VDC RAD | 56% | View |
Submit your RFQ for PHE450PA4100JR05 and get a quote within 24 hours.
