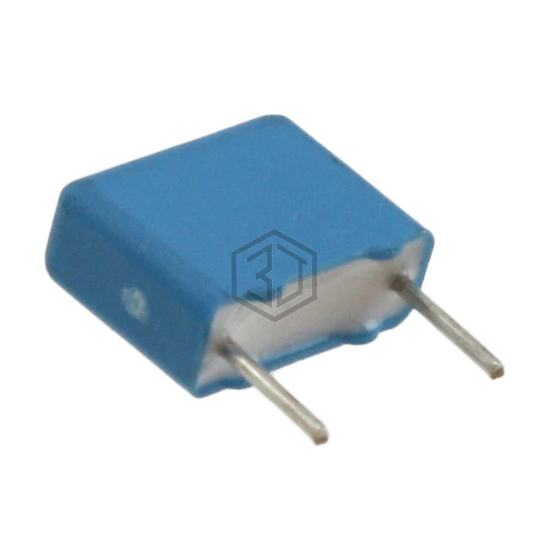

CAP FILM 470PF 5% 630VDC RADIAL
PHE450MK3470JR05 is a Film Capacitors manufactured by KEMET. CAP FILM 470PF 5% 630VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 630V, package / case Radial.
In Stock: 8,458
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.394" L x 0.157" W (10.00mm x 4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP385147100JC02G0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 470PF 5% 1KVDC RADIAL | 91% | View |
| BFC237522471 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 470PF 5% 1KVDC RADIAL | 90% | View |
| MKP385147160JD02G0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 470PF 5% 1.6KVDC RADIAL | 79% | View |
| BFC237548471 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 470PF 5% 2KVDC RADIAL | 74% | View |
| BFC238562471 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 470PF 5% 2KVDC RADIAL | 72% | View |
| MKP385147250JIP2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 470PF 5% 2.5KVDC RADIAL | 66% | View |
