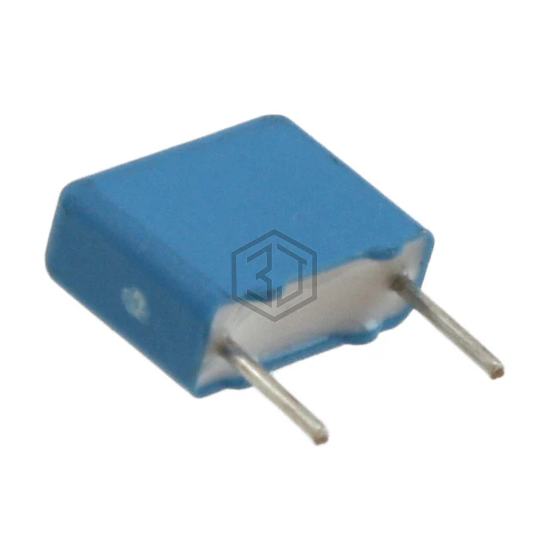

CAP FILM 4700PF 5% 400VDC RADIAL
PHE450KK4470JR05 is a Film Capacitors manufactured by KEMET. CAP FILM 4700PF 5% 400VDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating - dc 400V, package / case Radial.
In Stock: 1,736
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.394" L x 0.157" W (10.00mm x 4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BFC237051472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 10% 400VDC RAD | 98% | View |
| BFC237052472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 400VDC RADIAL | 98% | View |
| BFC246958472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 10% 400VDC RAD | 98% | View |
| BFC237156472 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 5% 400VDC RADIAL | 98% | View |
| F339MX224731MCA2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 4700PF 20% 630VDC RAD | 91% | View |
| B32671L0472K000 | EPCOS - TDK Electronics | CAP FILM 4700PF 10% 1KVDC RADIAL | 78% | View |
Submit your RFQ for PHE450KK4470JR05 and get a quote within 24 hours.
