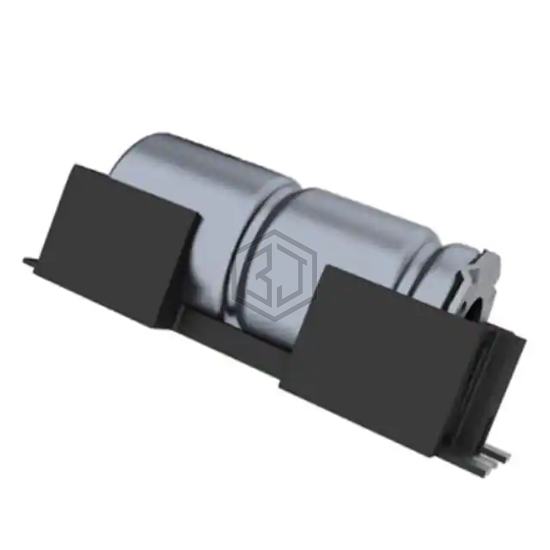

ALUMINUM ELECTROLYTIC, CROWN SMD
PES227KKP4220ME4 is a Aluminum Electrolytic Capacitors manufactured by KEMET. ALUMINUM ELECTROLYTIC, CROWN SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 40 V, package / case Nonstandard SMD.
In Stock: 90
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 47mOhm @ 100Hz |
| Lifetime @ Temp. | 6300 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 6.65 A @ 100 Hz |
| Ripple Current @ High Frequency | 19.76 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 1.693" L x 0.709" W (43.00mm x 18.00mm) |
| Height - Seated (Max) | 0.697" (17.70mm) |
| Surface Mount Land Size | 1.994" L x 0.610" W (50.65mm x 15.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard SMD |
Submit your RFQ for PES227KKP4220ME4 and get a quote within 24 hours.
